Advanced Warehouse Planning and Layout Design
Efficient warehouse layout design is crucial for optimizing operations and maximizing productivity. This guide covers best practices and strategies for warehouse planning.

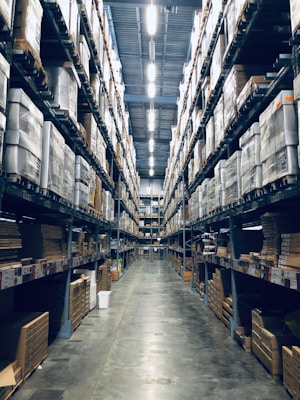

Understanding Warehouse Layout
A well-designed warehouse layout can significantly improve efficiency, reduce costs, and enhance safety. The layout should support your operational workflow while maximizing available space.
Types of Warehouse Layouts
1. U-Shaped Flow
The U-shaped layout is one of the most popular designs where receiving and shipping occur at the same end of the warehouse.
Advantages:
- Efficient use of loading docks
- Simplified material handling
- Better supervision of operations
- Reduced travel distances
Best For:
- High-volume operations
- Limited dock space
- Cross-docking operations
2. Through-Flow (I-Shaped)
Products enter at one end and exit at the opposite end, creating a straight-line flow.
Advantages:
- Simple to understand and implement
- Works well for linear processes
- Minimizes product handling
Best For:
- Long, narrow buildings
- High-throughput operations
- Production-integrated warehouses
3. L-Shaped Flow
A hybrid approach combining elements of both U-shaped and through-flow layouts.
Advantages:
- Flexible design
- Separates receiving and shipping
- Efficient space utilization
Storage Systems
Selective Pallet Racking
The most common storage system providing direct access to all pallets.
- Capacity: Low to medium density
- Selectivity: 100%
- Cost: Low to medium
- Best For: Wide variety of SKUs
Drive-In/Drive-Through Racking
High-density storage where forklifts drive directly into rack lanes.
- Capacity: High density
- Selectivity: Low (LIFO or FIFO)
- Cost: Medium
- Best For: High-volume, low-variety items
Push-Back Racking
Pallets are loaded from one side and pushed back on rails.
- Capacity: Medium to high density
- Selectivity: Medium (LIFO)
- Cost: Medium to high
- Best For: Multiple pallets per SKU
Warehouse Zones
Effective warehouse planning divides the facility into functional zones:
Receiving Zone
- Incoming shipment inspection
- Quality control checks
- Temporary staging area
- Barcode scanning and data entry
Storage Zone
- Reserve storage (bulk items)
- Forward picking locations
- Organized by product characteristics
- Climate-controlled areas if needed
Picking Zone
- High-velocity items at ground level
- Organized for efficient picking
- Batch picking areas
- Zone picking sections
Packing and Shipping Zone
- Order consolidation
- Packing stations
- Quality checks
- Staging for outbound shipments
Slotting Optimization
Slotting is the process of determining the best location for each product.
ABC Analysis
Classify products based on turnover rate:
- A Items (20% of SKUs, 80% of picks): Place in golden zone, close to packing
- B Items (30% of SKUs, 15% of picks): Place in accessible locations
- C Items (50% of SKUs, 5% of picks): Can be in less accessible areas
Factors to Consider
- Velocity: How frequently items are picked
- Cube Movement: Volume × picks per day
- Product Relationships: Items often ordered together
- Physical Characteristics: Size, weight, special handling
- Seasonality: Demand patterns throughout the year
Aisle Width Considerations
Wide Aisles (12+ feet)
- Standard forklifts
- High accessibility
- Lower storage density
Narrow Aisles (8-10 feet)
- Special narrow-aisle equipment
- Increased storage density
- Reduced maneuverability
Very Narrow Aisles (6 feet)
- Specialized equipment required
- Maximum storage density
- Highest cost per square foot
Technology Integration
Warehouse Management System (WMS)
- Real-time inventory tracking
- Automated slotting recommendations
- Pick path optimization
- Labor management
Mobile Navigation
- Beacon-based navigation
- Turn-by-turn directions
- Real-time task updates
- Location verification
Automation
- Automated Storage and Retrieval Systems (AS/RS)
- Conveyor systems
- Sortation systems
- Picking robots
Safety Considerations
Warehouse safety is paramount. The Occupational Safety and Health Administration (OSHA) provides comprehensive guidelines for warehouse safety standards and best practices.
Aisle Marking
- Clear floor markings
- One-way traffic where appropriate
- Pedestrian walkways
- Emergency exits
Lighting
- Adequate illumination (30-50 foot-candles)
- Emergency lighting
- Motion sensors for energy efficiency
Equipment Zones
- Designated charging areas
- Maintenance zones
- Safety barriers
Using Our Warehouse Planning Tool
Our visual warehouse planning tool helps you:
- Create Layout: Draw your warehouse dimensions
- Add Zones: Define functional areas
- Place Racks: Position storage equipment
- Assign Locations: Create location codes
- Optimize: Get AI-powered suggestions
- Implement: Export plans for implementation
Step-by-Step Process
- Navigate to the Warehouse Planning section
- Click "Create New Layout"
- Enter warehouse dimensions
- Use drag-and-drop tools to add racks and zones
- Label locations using your naming convention
- Save and share with your team
Measuring Success
Track these KPIs to measure layout effectiveness:
- Order Pick Rate: Lines picked per hour
- Travel Time: Time spent walking/driving
- Space Utilization: Percentage of available space used
- Accuracy Rate: Correct picks vs. total picks
- Dock-to-Stock Time: Time to receive and put away
Integrate your layout metrics with order fulfillment best practices to optimize the entire fulfillment workflow.
Continuous Improvement
Warehouse layout should evolve with your business:
- Conduct quarterly reviews
- Analyze pick patterns
- Reslot based on seasonal changes
- Test layout changes in small areas first
- Gather feedback from warehouse staff
Conclusion
Effective warehouse planning requires understanding your operations, products, and equipment. Use our planning tools to design an optimized layout that supports your business goals.
